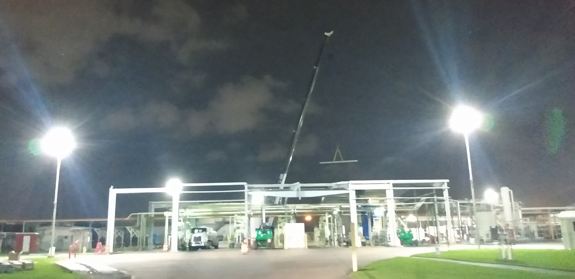

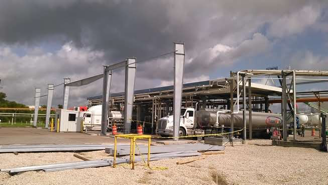

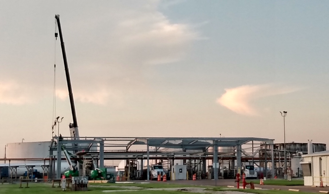

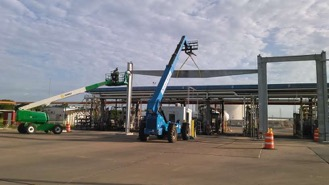

Loading Terminal Canopy Design

Engineer of Record for the Design of the Main Loading Canopy for Chevron - Galena Terminal (2019)

• High-Wind Area, Hurricane Susceptible Region
• LIDAR, GPR for SUE and Vacuum Excavation
• Clustered Concrete Piles with Pile-caps for Foundations
• Set-in-place Anchoring System with Shear Capability
• Structural Steel and Light Weight Metal Framing for the Main Wind Resistant Framing (MWRF) and Primary Structure
• 140’ X 100’ Canopy footprint, 30’ ridge height
